Multidimensional Assay

A blood stimulation assay with multidimensional readouts

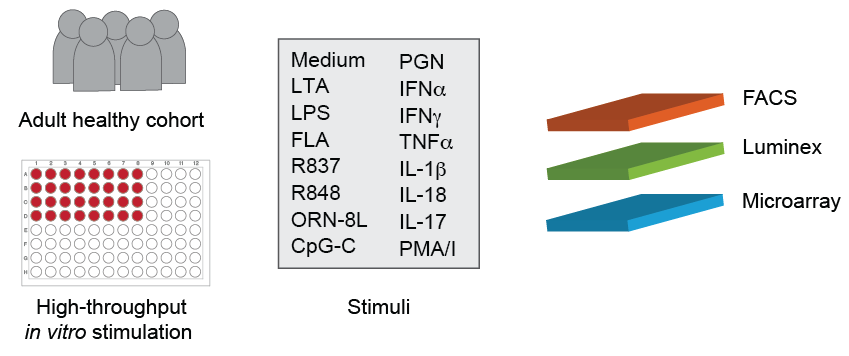

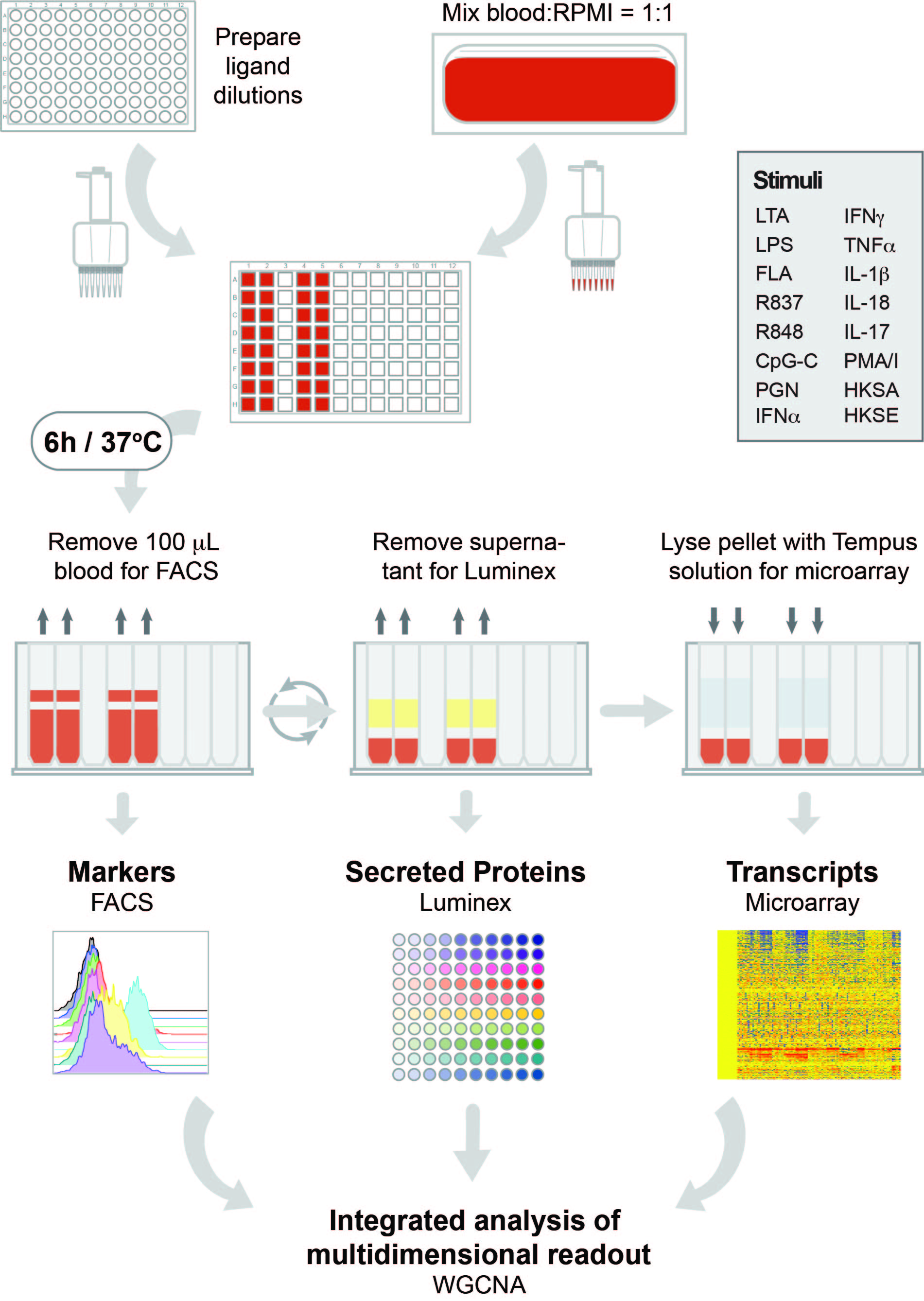

We present an in vitro blood stimulation assay that aims at characterizing inducible immune networks and identifying disruptions in disease. Whole blood is challenged for 6h in vitro with various stimuli, including TLR ligands and cytokines. Responses are assessed by simultaneously measuring the transcriptome by microarray, leukocyte surface markers by flow cytometry and protein secretion by Luminex.

A module framework for in vitro blood stimulation

We developed and annotated a reference set of transcriptional modules based on co-expressed groups of genes across stimuli in healthy adult blood. These modules cover a broad range of inducible immune networks, including the interferon response, NF-kB-driven pro-inflammation, the inflammasome, leukocyte maturation and migration and protein synthesis. Modules can be used to generate stimulus fingerprints or to run gene set enrichment analyses.

Module Framework
Data Integration

Data integration with WGCNA

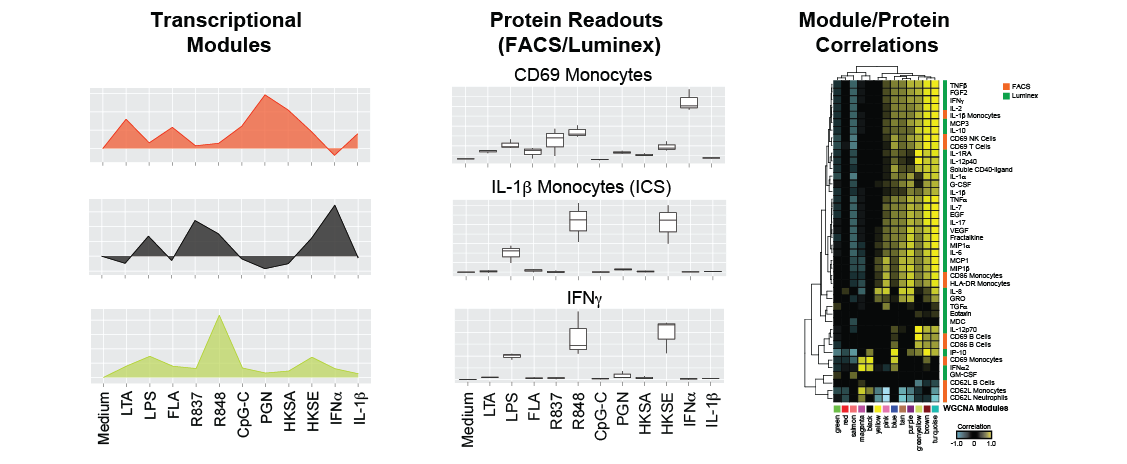

We applied weighted gene co-expression network analysis (WGCNA) to integrate gene- and protein-level data in both healthy adult and sJIA datasets. WGCNA generates its own sets of co-expression modules and correlates module eigengene to continuous traits such as flow cytometry geometric mean fluorescence intensity (gMFI) ratios or Luminex measurements. WGCNA also provides gene-level correlations to a specific protein trait.

Altered inducible inflammatory networks in sJIA

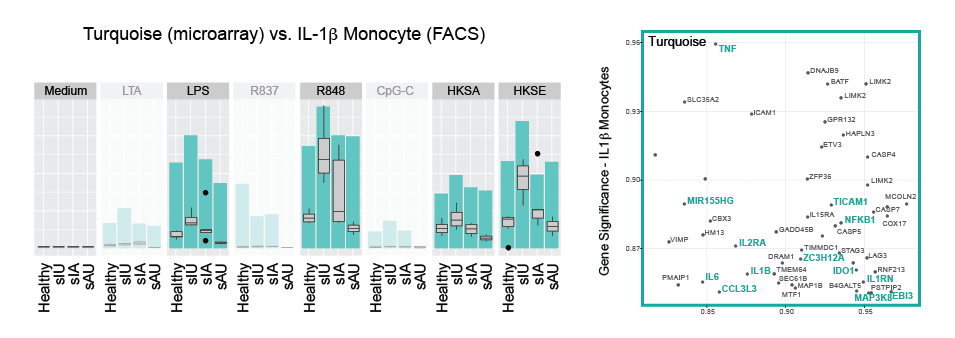

We applied this assay to better understand altered molecular networks that lead to IL-1b dysregulation in systemic onset juvenile idiopathic arthritis (sJIA). Transcriptional and protein responses to several inflammatory stimuli were assessed in inactive untreated patients, inactive patients treated with the IL-1 receptor antagonist Anakinra and active untreated patients separately. We identified exacerbated responses to TLR4 and TLR8 ligands and converse dampened responses to TLR7 in sJIA monocytes.

Application to sJIA


Notes: Human blood can contain infectious agents. Blood needs to be manipulated in a biosafety cabinet, not on the bench, by properly trained personnel. Applying the aseptic technique will minimize the possibility of external contamination of cultures, materials and reagents. The footnote lists the vendors and catalog numbers for the consumables used in the experiments, but does not represent the endorsement of a particular source over other comparable products.


  • Culture plate: 96-deep well plate, polypropylene (PPN), sterile, endotoxin-free1
  • Sealable lids for 96-deep well plate2
  • Sterile lids for 96-deep well plate3
  • 96-well V-bottom plate with lid, polystyrene, sterile, endotoxin-free4
  • 50 mL and 100 mL reagent reservoirs, sterile, single-packed, endotoxin-free5
  • 96-well PPN tubes (for supernatant storage)6
  • ACD Vacutainer tubes7
  • Tempus reagent (from Tempus tubes)8
  • Medium (RPMI-GlutaMax9)
  • Stimuli (diluted to final volume of 50 µL/test)
  • Single-channel pipettes
  • Multi-channel pipettes (200 or 300 µL, and 1200 µL volume)
  • Biosafety cabinet, level 2
  • CO2 incubator
  • Refrigerators (+4oC, -20oC, -80oC)
  • Centrifuge with a cooling-option to +4oC and a rotor with plate adapters (2000 x g required)


Collection of human blood
  1. Calculate the volume of blood needed for the experiment (0.5mL/well) and number of required ACD Vacutainer tubes.
  2. Notes
    1. Record transport time (from needle to bench) of ACD tube.
    2. In our hands, 0.5 mL of blood yields 1-2 µg of total RNA. The volume of blood/well can be reduced up to 0.2 mL/well.
Preparation of reagents
  1. Design plate layout and prepare experiment documentation.
  2. Calculate the amount of stimulus to be added per well to obtain the necessary concentration for a total volume of 1 mL (use template table). Dilute each stimulus in total volume of 50 µL of medium per well.
  3. Adjust the volumes of diluted stimuli to the number of wells and add 10-15% pipetting overage.
  4. Aliquot stimulus-medium mix to the 96-well V-bottom plate which layout that corresponds to the culture plate; the diluted stimuli can be added to the blood with a multi-channel pipette.
  5. Cover the plate and keep at +4oC until the stimulation.
  6. Note: It is recommended to create an Excel spreadsheet with all the stimuli, their stock concentrations, working concentrations and volumes, so calculations can be easily adjusted depending on the number of samples.

Preparation of blood-medium mix and culture
  1. Calculate the amount of blood needed for all the wells (0.5 mL/well) and add 10-15% pipetting overage.
  2. Transfer the diluted stimuli (50 µL/well) to the culture plate.
  3. Transfer the blood to the reagent reservoir and add medium in 1.1 to 1 ratio. Mix gently with the pipette. Avoid splatter.
  4. Transfer the blood-medium mix (0.95 mL/well) to the culture plate with a multi-channel pipette.
  5. Mix gently with a multichannel pipette. The total volume/well is now 1 mL.
  6. Culture the plate for 6h in a 5% CO2 incubator set to 37oC.
  7. Note: If the reagents and consumables are not tested for endotoxin, 10 µg/mL of polymyxin B can be added to wells to prevent unintended TLR4 activation with endotoxin (LPS).

Aliquoting blood for flow cytometry
  1. Remove the plate(s) from the incubator and mix the wells gently with a multi-channel pipette.
  2. Remove 100 µL of blood for flow cytometry staining.
Supernatant harvest
  1. Centrifuge the plate(s) at 2,000 x g for 15 min at +4oC.
  2. Carefully remove 400 µL of the supernatant with a multi-channel pipette and transfer 2 x 200 µL aliquots in 96-well PPN tubes.
  3. Notes
    1. Plates need to be properly balanced and certified to sustain high g.
    2. Whole blood pellet is liquid and easily disturbed. 200 or 300 µL pipettes are recommended for aliquoting the supernatant.
    3. The number and volume of aliquots can be modified according to individual requirements, providing the final well volume is not exceeded once the Tempus solution is added to the blood pellet in a 2:1 ratio.
  4. Label PPN racks, store the supernatants at -80oC and update the storage location log.
Blood lysis and preservation until RNA extraction
  1. Calculate the necessary volume of Tempus reagent needed for the plate (Tempus to blood pellet ratio = 2:1); add 10% pipetting overage.
  2. Pour the Tempus solution into the reagent reservoir of appropriate size.
  3. Using a multi-channel pipette, add 1 mL of Tempus reagent per well (that contains 0.5 mL of blood pellet). Mix well by pipetting vigorously but carefully up and down at least 5 times. Avoid foaming.
  4. Note: After Tempus reagent is properly mixed in, the color of blood changes from deep red to very dark brown with a reddish hue.

  5. Close the plate with the sealable lid; label the plate, update sample log form and store at -20oC until RNA extraction.
  6. Note: If the lid does not seal the plate tightly, place the plate in an additional leak-proof biohazard bag or container.

1 Greiner Bio-One 2mL deep 96-well PP Masterblock plates, sterile, pyrogen-free. USA Scientific, # 5678-0271
2 Greiner Bio-One EVA cover for 96-well 2.0 ml Masterblock. USA Scientific, # 5638-1080
3 Thermo Scientific plate lids, sterile individually wrapped. Thermo Scientific, # 62402-929
4 Corning 96 well clear V-bottom tc-treated microplate, individually wrapped, with lid, sterile. Corning #3894
5 Costar 50 mL & 100 mL Reagent Reservoirs, individually wrapped, sterile. Corning #4871 & 4873
6 Micronic 0.5 mL alphanumeric screw cap tubes V bottom in 1D barcoded, Loborack 96 case, Micronic # MPW42049BCX1
7 BD 8.5 mL BD Vacutainer glass whole blood tube, ACD solution A. BD # 364606. ACD solution volume = 1.5 mL
8 Applied Biosystems Tempus Blood RNA Tubes. Applied Biosystems # 4342792
9 Invitrogen RPMI 1640 (1X), liquid, contains GlutaMAX & Phenol Red, 10 × 500 mL. Invitrogen # 61870-127

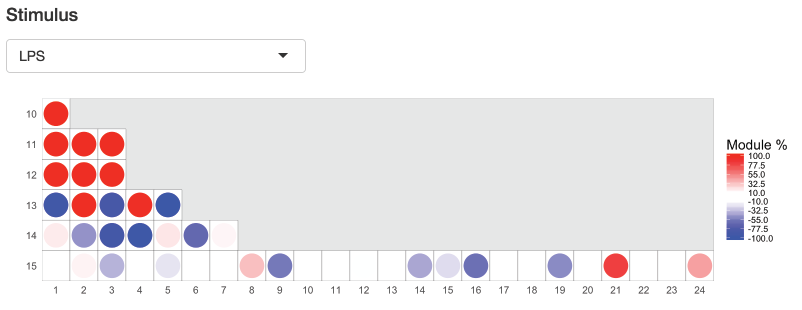

The heatmap represents hierarchical clustering of the reference module fingerprints, derived from microarray data of in vitro stimulated healthy adult blood using a method described here http://tinyurl.com/h8uxept. Module score is expressed on a transparency scale as a percentage of represented transcripts that are over- (red) or underexpressed (blue) more than two-fold. Data are normalized to the medium control for each donor. Fingerprints are averaged by stimulus. Median n (donor) per stimulus = 8.
